Inline Flat emitter Mold for irrigation tape

The drip irrigation dripper mold  cavity adopts three - plate combination, The different flow of the labyrinth plate can be changed.


Product Specification:

  • Type:XPM-128 XPM-256
  • Price:$45,000 $56,000
  • :
Inquiry Now

Want create site? Find Free WordPress Themes and plugins.

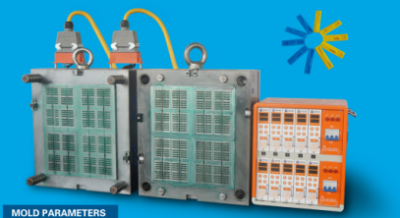

Main technical indicators of irrigation dripper mold

irrigation dripper mold

The drip irrigation dripper mold  cavity adopts three – plate combination, The different flow of the labyrinth plate can be changed.

The drip irrigation dripper mold structure adopts even and balanced submarine gate, the ejector knock-out,opening stroke ≤60mm

The drip irrigation dripper mold material is from sweden good-quality mold steel S136,HRC50-52 , the drip irrigation dripper mold service life more than 3 million times .

The drip irrigation dripper mold processing precision reach to ±0.01mm, ra 0.1, mirror effect

Dripper manufacture deviation cu <1%

Dripper flow rate deviation factor <4%

Mold open-close cycle ≤10s

Pictures of irrigation dripper mold

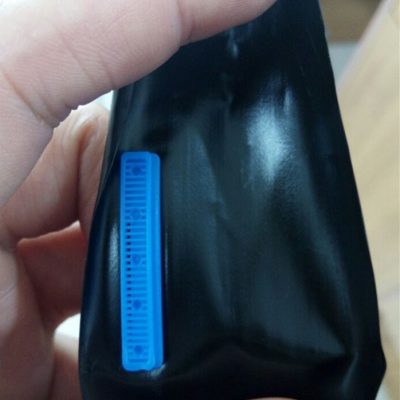

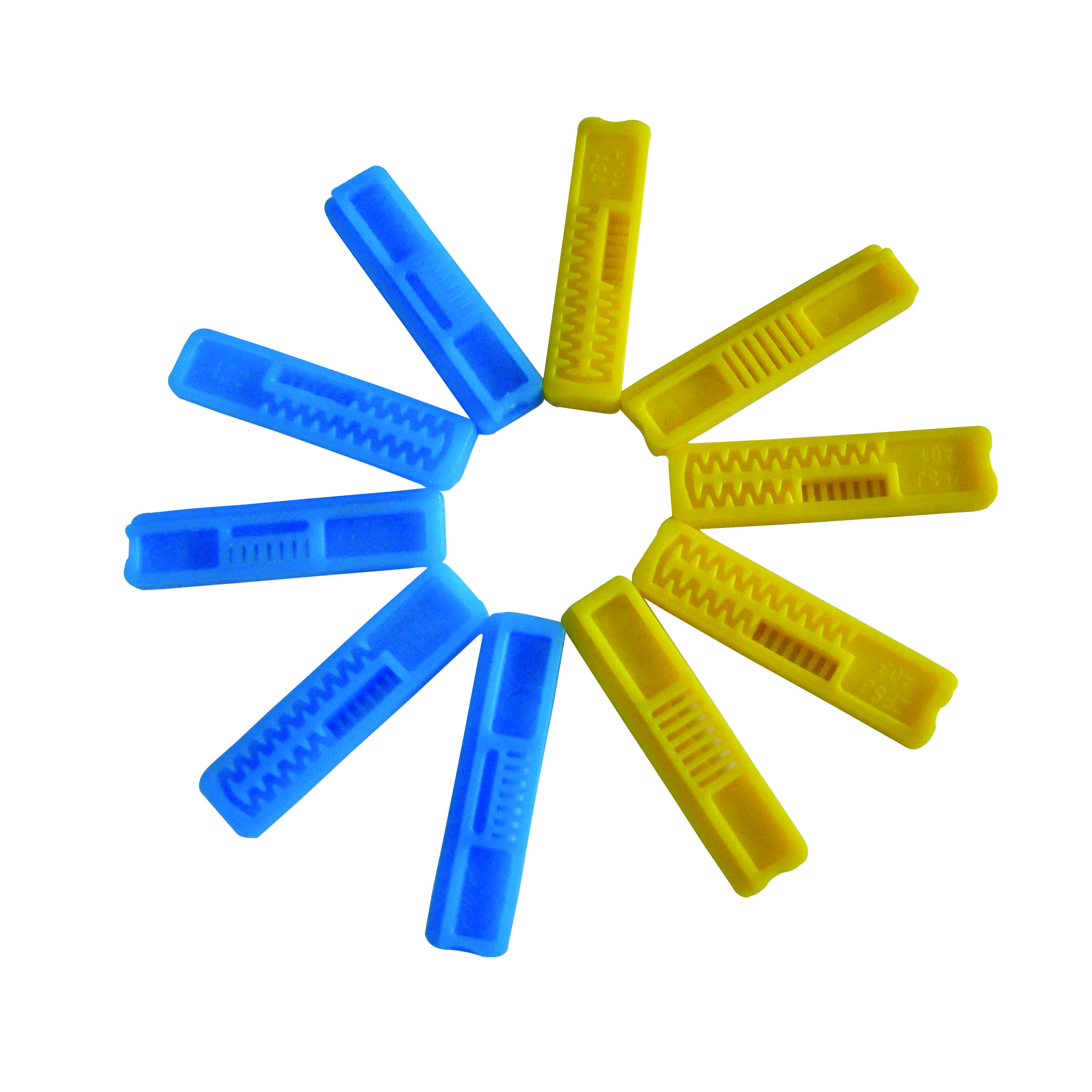

drip tape dripper        drip irrigation dripper

The irrigation dripper is the energy dissipation and water discharge facility of drip irrigation system. The effect is to remove the residual energy of the pressurized water flow in the capillary tube, allowing the water to flow drop by drop from the outlet, evenly and slowly flooding the soil. According to its energy dissipation characteristics can be divided into three basic types.

1.The long path dripper

Generally, the diameter of the flow channel is less than 1.0mm, the length is 50~60cm, and even longer. In the process of flow, the water overcomes the friction on the side wall and dissipates energy.

2.The orifice type dripper

It usually inserted into the capillary tube, the inlet and outlet diameter is small, with a large cavity in the middle, and the pressure flow consumes the remaining energy through diffusion contraction or rotation.



The irrigation dripper mold specification

Cavity quantity Thirty-two cavities Sixty-four cavities One hundred and twenty-eight cavities Note
Overall dimensions of the mold(mm) 450*420*650 500*390*455 500*450*455
Gate forms  Submarine gate/cold(hot)runner inlet Submarine gate/hot runner inlet Submarine gate/hot runner inlet Balance material feeding, automatically interrupted pouring
 Pushing-out mode Secondary pushing-out of ejector pin Secondary pushing-out of ejector pin Secondary pushing-out of ejector pin Making sure that the final products will drop off automatically
Cooling mode Water-cycle cooling Water-cycle cooling Water-cycle cooling
Working mode Automatic production Automatic production Automatic production
Service life  Five million times   Five million times  Five million times
Producing deviation ≤5% ≤5% ≤5% Deviation of emitter flowing rate
Model of injection molding machine for it SA1600 SA1600 SA2000/SA2500

Factory show

drip irrigation mold supplier  drip irrigation mold factory drip irrigation products
