Inline flat dripper irrigation drip tape machine

Tangshan Zhifu Plastic Machinery Co., Ltd., Experts in Manufacturing and Exporting Inline Flat Dripper Irrigation Tape Machine. Speed 200 m/min.


Product Specification:

  • Type:SJNX-70
  • PRICE:$270,000
Inquiry Now

Want create site? Find Free WordPress Themes and plugins.

Drip tape machine line characteristics

flat dripper drip tape machine


  1. The drip tape machine adopts centralized control by computer, having the characteristics of stable production process, easy operation, and continuous production.

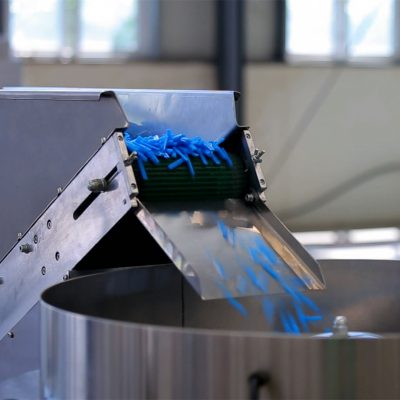

  2. Drippers feeding , choosing, transferring, storage, quantity-fixing supply and insertion can be completed continuously and synchronously. Transfer speed can be adjusted according to production speed of drip irrigation tape, ensuring that plastic drippers can be transferred to the bonding place of drip tape accurately and then bond them firmly.
  3. The unique structure, special materials and advanced processing crafts of screw bolt of extruder, die head, and dimension-fixing cylinder makes raw material extruded plasticized evenly, pipe-wall smooth and diameter fixed accurate.
  4. The material of vacuum water tank, cooling water tank are made of stainless steel. Vacuum degree in vacuum water tank can be adjusted flexibly and accurately, and can be kept stable.
  5. Might drying equipment can solve effectively water carrying in high -speed production.
  6. The drip tape machine adopts two haul-off machines controlled by servo driving so that haul-off speed is steady and can be adjusted synchronously according to production speed. And the line has low noise.
  7. The drip tape machine adopts double-station rolling method, so it has the functions of changing roll without stopping machine. The rolling length can be adjusted according to actual needs.
  8. The detailed description of relationship among the speed, dripper distance and dripper feeding quantity can refer to the instruction manual for details

The drip tape machine certificate/Patent


 Item Certificate/Patent type
Inline flat dripper drip tape machine CE
ISO
The first researcher in China
Air driving dripper transfer device Utility new type patent
automatic cutter on the double station winder Utility new type patent
Hole drilling device Utility new type patent
Flat dripper Utility new type patent
Vacuum sizing water tank Appearance design patent



Drip tape machine main technical parameter


NO. Item The drip tape machine technical parameter
                            SJNX-70                                                        SJNX-90
1 Specification of final product ф12MM  ф16MM  ф20MM
Wall thickness of final product 0.15-0.6MM 0.15-0.9MM
2 Dripper space 100-1000MM 100-1000MM
3 Production speed 120M/MIN 120M/MIN
4 Main driving power 45kw 55kw
5 Max. extruding capacity 120kg/h 158kg/h
6 Heating power 26kw 41kw
7 Filter changing way Hydraulic filter Hydraulic filter
8 Total dripper supply power 1.9kw 1.9kw
9 Dripper supply speed ≤800 pcs/min ≤800 pcs/min
10 Driving power of tractor 2.0kw*2 2.0kw*2
11 Driving power of hole drilling 0.4kw 0.4kw
12 Hole drillingspeed ≤800 pcs/min ≤800 pcs/min
13 Winding way Automatic Automatic
14 Winder servo motor driver  2kw*2 Servo motor 2KW*2  2kw*2 Servo motor 2KW*2
15 Water consumption 3.5 m³/h 3.5m³/h
16 Air consumption 2.5m³/h 2.5m³/h
17 Installation power 100kw 120kw
18 Overall dimension 36m*3m*2.7m 36m*3.5m*3m



NO. Item  The drip tape machine technical parameter
SJNX-70-G                                                                                                       SJNX-90-G
1 Specification of final product ф12MM  ф16MM  ф20MM
2 Wall thickness of final product 0.15-0.6MM 0.15-0.9MM
3 Dripper space 100-1000MM 100-1000MM
4 Production speed 200M/MIN 200M/MIN
5 Main driving power 45kw 55kw
6 Max. extruding capacity 120kg/h 158kg/h
7 Heating power 32kw 41kw
8 Filter changing way Hydraulic filter Hydraulic filter
9 Dripper supply speed ≤800 pcs/min ≤800 pcs/min
10 Driving power of tractor 3.5kw*2 3.5kw*2
11 Driving power of hole drilling 1.45kw 1.45kw
12 Hole drilling speed ≤800 pcs/min ≤800 pcs/min
13 Hole checking camera OMRON(12 inch screen) OMRON(12 inch screen)
14 Winding way Automatic Automatic
15 Winder servo motor driver  4.7kw*2 Servo motor 4.7KW*2  4.7kw*2 Servo motor 4.7KW*2
16 Water consumption 3.5 m³/h 3.5m³/h
17  Air consumption 2.5m³/h 2.5m³/h
18 Installation power 110kw 120kw
19 Overall dimension 36m*4m*2.7m 36m*4m*3m

Drip tape machine final product

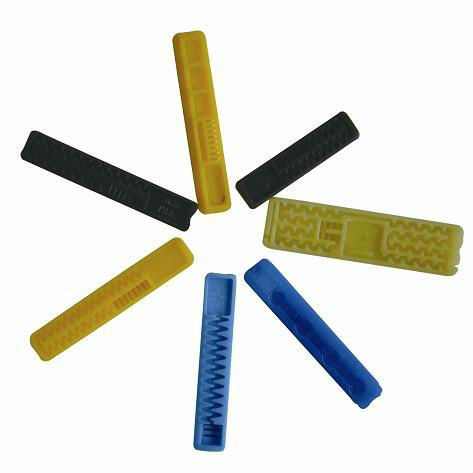

drip tape                 irrigation dripper

Inline flat drip tape machine characteristics


  1. The distance between drippers can be varied to meet the irrigation demands of different crops so that it can save water and increase output to the largest extent.
  2. Special labyrinth type design on drippers makes users control dripping quantity through water supply pressure according to actual water quantity needed by the crop, and make dripping volume even for each emitter on a fixed length.

The irrigation dripper mold

irrigation dripper mold        drip irrigation dripper

Technical parameters of mold

Cavity quantity Thirty-two cavities Sixty-four cavities One hundred and twenty-eight cavities Note
 Overall dimensions of the mold(mm) 450*420*650 500*390*455 500*450*455
 Gate forms  Submarine gate/cold(hot)runner inlet Submarine gate/hot runner inlet Submarine gate/hot runner inlet Balance material feeding, automatically interrupted pouring
 Pushing-out mode Secondary pushing-out of ejector pin Secondary pushing-out of ejector pin Secondary pushing-out of ejector pin Making sure that the final products will drop off automatically
Cooling mode Water-cycle cooling Water-cycle cooling Water-cycle cooling
Working mode Automatic production Automatic production Automatic production
Service life  Five million times  Five million times  Five million times
Producing deviation ≤5% ≤5% ≤5% Deviation of emitter flowing rate
Model of injection molding machine for it SA1600 SA1600 SA2000/SA2500



Other drip tape machine

round dripper drip pipe machine           drip irrigation tape machine

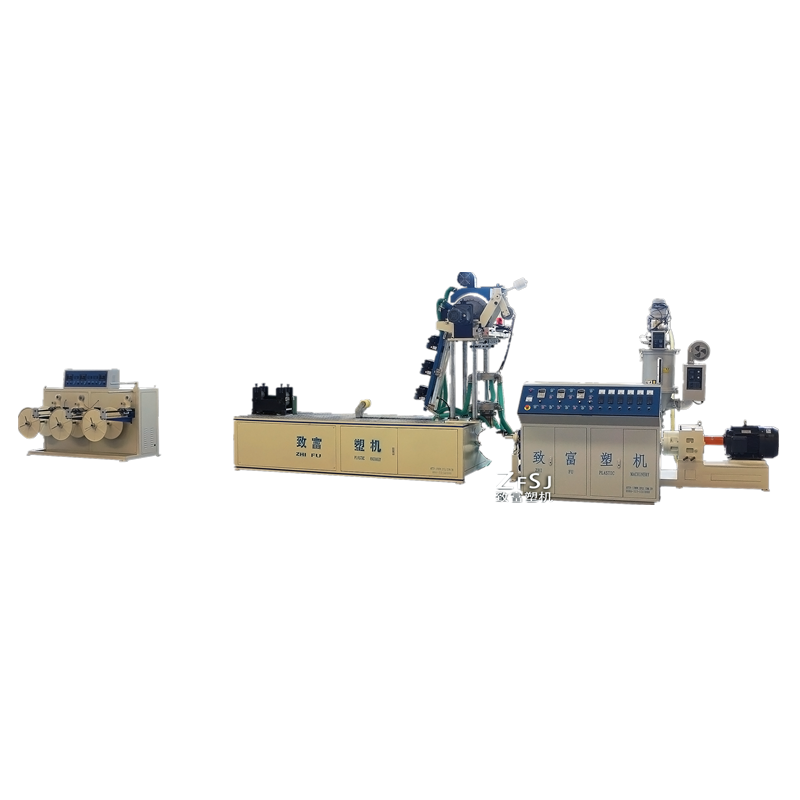

Inline round dripper drip tape machine                                   Single blade labyrinth type drip tape machine



Drip tape machine factory



drip tape factory

China Tangshan Zhifu Plastic Machinery Co., Ltd is in the leader position of water-saving irrigation field, we are the pioneer enterprise for making drip tape machine in China and we have more than ten year histories of manufacturing the drip tape machine.We are the largest manufacturer and seller of irrigation drip tape machine in China. From 2003 till now, we have sold the irrigation drip tape machine in accumulation more than 2900 sets, only the single blade labyrinth drip tape machine we sold reach more than 2200 sets.
