High quality LDPE drip tape drip line irrigation hose with round dripper for irrigation system

Drip line irrigation hose with round dripper is a kind of plastic product that USES plastic pipe to send water (liquid fertilizer or pesticide, etc.) to the root of crops for local irrigation through the cylindrical pressure compensation drops on the main pipe


Product Specification:

  • TYPE:NXYZ16-06-300
  • PRICE(EXW):$0.1
Inquiry Now

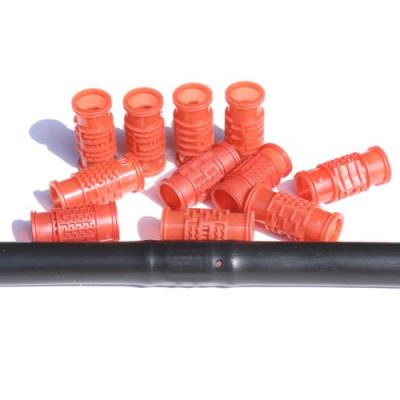

Drip line irrigation hose with round dripper

Introduction

Drip line irrigation hose with round dripper is a pipe that sticks a ready round dripper with labyrinth and then make holes on dripper by driller. Drip line irrigation hose with round dripper is a kind of plastic product that USES plastic pipe to send water (liquid fertilizer or pesticide, etc.) to the root of crops for local irrigation through the cylindrical pressure compensation drops on the main pipe



drip line irrigation hose



Features

●Long maze runner which ensures turbulent flow.

●High-pressure, long-runner make a turbulence inside the emitter with self-cleaning.

●The wide inlet filter area improves the anti-blocking ability.

●One, two or four outlets can be made on each dripper which decreases the risk of blocking by outside reason.

●The emitter is installed in the factory, reducing installation and investment costs.

●Paving lengths reaches up to 300 meters.

●Robust and can be used in all reasons.

●Compared with other drip tape, it has strong resistance to environmental, anti-blocking properties, low water quality requirements, turbulent flow and longer life.

●With low price, reliable quality, good irrigation effect, convenient installation, transportation and use, the embedded cylindrical drip irrigation pipe is an economic water-saving irrigation product, which is very suitable for the development demand of precision agriculture

Drip irrigation machine

above ground drip irrigation

Technical parameter

Drip line irrigation hose with round dripper Diameter (mm) Φ12/16/20
Normal working pressure (Mpa) 0.1
drip irrigation pipe application Dripper Distance (mm) ≥200
Maximum Paving Lenth (m) 300
Roll Lenth (m) ≤500
Thickness (mm) 0.5-1.2
Flow (L/H) 2-4
Filter Mesh (mesh) 120
Uniformity (%) ≥85

The special size can be customized.

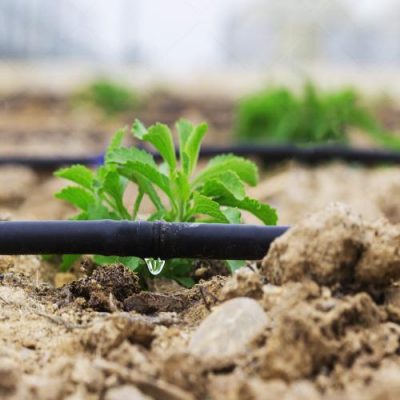

Application of drip irrigation pipe

drip irrigation for lawn



1. Drip line irrigation hose with round dripper is widely used in greenhouse field crops, especially for economic crops such as vegetables, fruits, flowers, nurseries, and landscaping.

2. Drip line irrigation hose with round dripper are very suitable for irrigation of field crops and trees in greenhouses in areas where water resources and labor are scarce.



installing a drip irrigation system



Other drip line irrigation hose products



inline drip irrigation system        drip irrigation hose
