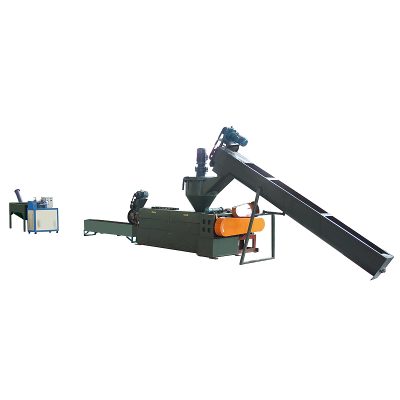

Moist material vent plastic pelletizing machine

Moist material vent plastic pelletizing machine is mainly used for recycling the waste plastic products. It has the functions of removing air, water and residue.

Product Specification:

Type:SJP-120 SJP-130 SJP-150 SJP-180

Inquiry Now

Product Details

Introduction

Moist material vent plastic pelletizing machine is mainly used for recycling the waste plastic products. It has the functions of removing air, water and residue. It can extrude and pelletize directly for waste agricultural film, waste woven bag, leftover material of plastics and various thermoplastic plastics with moisture(water content is below 10%) and without mositure after washing. And the pellets are dense, thick and no air bores.

Automatic feeding pellet-cutting machine is the main part of the plastic pelletizing machine set in our company. With the help of draught pressing roller, the plastics with strip shape which have been extruded by extruder and fixed their shape in the cooling tank are carried into the high-speed rotating cutting room with constant speed and cut into pellets.

Due to the particularity of nature and stable position in the market of plastic materials, the best way to dispose of them is recycling not landfill. GreenBeston plastic pelletizing machine for sale is one of the most utility waste plastic recycling plants.

plastic material

Main technical parameter

No.	Item		Moist material vent plastic pelletizing machine technical parameter
1	Model		SJP-120	SJP-130	SJP-150	SJP-180
2	Max.extruding capacity	Film material	45 kg/h	70 kg/h	100 kg/h	190 kg/h
2	Max.extruding capacity	Block material	80 kg/h	100 kg/h	120 kg/h	210 kg/h
3	Driving power		18.5 KW	37 KW	45 KW	55 KW
4	Screw rotating speed		57 R/MIN	54 R/MIN	54 R/MIN	54 R/MIN
5	Heating power		24 KW	40 KW	55 KW	55 KW
6	Specification of die head		350 electric door	350 electric door	350 electric door	350 electric door
7	Installation power		43 KW	77 KW	100 KW	100 KW
8	Overall dimension（L×W×H）		3.3m×1.5m×1m	3.5m×1.7m×1.2m	3.6m×1.8m×1.2m	3.6m×1.8m×1.2m
9	Weight		900 kg	1200 kg	1400 kg	1500 kg

Material feeder

Drive power	Feeding way	Main axis rotating speed	Overall dimension（L×W×H）
1.5 KW	Screw type	35 r/min	4m×1.3m×2.15m

Forced Feeder

Drive power	Feeding way	Main axis rotating speed	Overall dimension（L×W×H）
4 KW	Screw type	43 r/min	0.87m×0.87m×1.6m

Pellets filling machine

Drive power	Feeding way	Main axis rotating speed	Overall dimension（L×W×H）
1.1 KW	Screw type	54 r/min	2m×1.1m×1.25m

Model	Drive power	Cutting diameter（mm）	Output	Overall dimension（L×W×H）	Weight
WQW-160	2.2 KW	Φ3	22 kg/h	0.6m×0.8m×1.15m	150 kg
